EDS GAMMA

METIS EDS GAMMA

METIS desktop professional scanner: great  quality,  fast  and  easy  to  use!
General details

The EDS GAMMA is an innovative A1 desktop planetary scanner and it’s the latest addition to the METIS EDS family (Easy Digital Scanner). The EDS is a new line of professional scanners that has been created by METIS in order to overcome the usual limitations inherent this category of products. In particular, to offer a superior image quality, ergonomics, ease of use and high productivity in a unique integrated solution.

Among the main characteristics of the EDS-GAMMA there are:

  • scan area size and resolution can vary according to user needs thanks to the integrated zoom optics and to the variable camera height and position; this makes possible to acquire very large originals (even larger than the A1 format) or increase the optical resolution over 800PPI on smaller formats
  • unique V-table solution with automatic shape recognition, deskew and curvature correction features
  • unrivalled image quality that is far beyond any other similar solution
  • extremely rapid acquisition time (about 30 full scans per minute)
  • integrated METIS LED lighting solution with advanced software control and 3D features
  • comprehensive EDS acquisition software with many powerful and useful features.
EDS GAMMAultima modifica: 2017-06-05T15:10:12+00:00 da guidocardelli
Technical Info

METIS EDS GAMMA Technical Specifications



GENERAL FEATURES
  • Supported DSLR Digital Cameras (CMOS color):
    • Canon 5Ds, 50 MegaPixels, Full Frame
    • Nikon D800 / D810, 36 MegaPixels, Full Frame
    • Nikon D5300, 24 MegaPixels, APS-C
    • Canon 5D MKII / 6D, 21 MegaPixels, Full Frame
  • Extensive support of Nikon/Canon lenses
  • Acquisition color depth of 14bit per channel (3x14bit), integrated sensors for real-time reading of exposure, color temperature and automatic focus
  • Variable camera height and position in order to opti- mize scan area and optical resolution; adjustable optical resolution (over 800 PPI is possible) through:
    • integrated Zoom optics with motorized focus
    • variable camera height
  • Acquisition area up to 90x60cm (A1=84×59,4cm). Acquisition area can be further extended (over the A0 format for drawings or maps)
  • Adjustable working area: it includes the V-table which consists of two tiltable and shiftable fully independent plates which can be easily adapted to different needs and perfectly accommodate even difficult original such as old and fragile books with limited opening angle
  • Acquisition time < 1 second; full cycle time, between one acquisition and the next one, including acquisition, processing and saving: ~ 2 seconds
  • Professional EDS LED lighting system with CRI=93 and high luminous flux of 3800 lumen; it includes 4 LED lamps fully and independently adjustable in position and tilt. All lamps are directly controlled by the EDS Software
  • PC minimal requirements: i7 Intel Processor and 16GB RAM; 2xUSB­2.0 and 2xUSB­3.0 ports; Windows 10 Professional 64bit
METIS EDS SOFTWARE SPECIFICATIONS
  • Background and parallel image processing/saving (image processing and saving do not affect the acquisition time)
  • “Live Video” function allow a real time control  over the scanning area; this is particularly useful in order to maximize image quality and to perfectly position the original respect to the camera
  • Image review and navigator tools with a full resolution image viewer
  • Automatic JOB handling with full image and shooting parameters save and reuse
  • Automatic image naming with user selectable rules (customizable fields, programmable increments, programmable actions, etc.)
  • Automatic or manual exposure and gray balance control (light color temperature compensation)
  • Automatic or manual focus control (with Depth Of Field customization)
  • Manual and automatic Crop
  • Automatic deskew and curvature correction
  • Automatic book center and shape recognition; automatic page split with definable overlap
  • Light uniformity correction Filter
  • Automatic Finger recognition and removal filter
  • Anti-Reflection shooting mode (for glossy originals)
  • EDS Light Control directly from the EDS software; it also allow advanced features such as: 3D acquisition for pattern, texture and relief enhancement (it extrapolate the 3-Dimensional shape and fine structure of the originals)
  • Keyboard shortcuts
  • Image saving in grayscale and color in TIFF, JPEG, JPEG2000, BMP, PNG, PDF, PDF-A, Multipage PDF, Multipage TIFF, TIFF G4 1bit
EDS GAMMAultima modifica: 2017-06-05T15:10:12+00:00 da guidocardelli
Documents

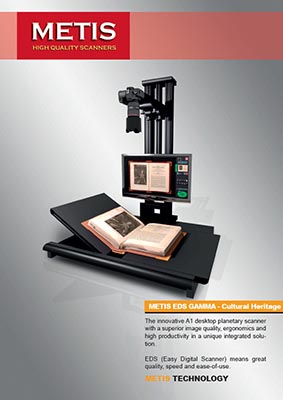

Click on this image to download the Brochure
